Fire Engine Network Architecture
Our comprehensive networking solutions are designed specifically for the unique demands of fire department operations. From apparatus-mounted systems to station infrastructure, we deliver reliable, secure connectivity that first responders can depend on.

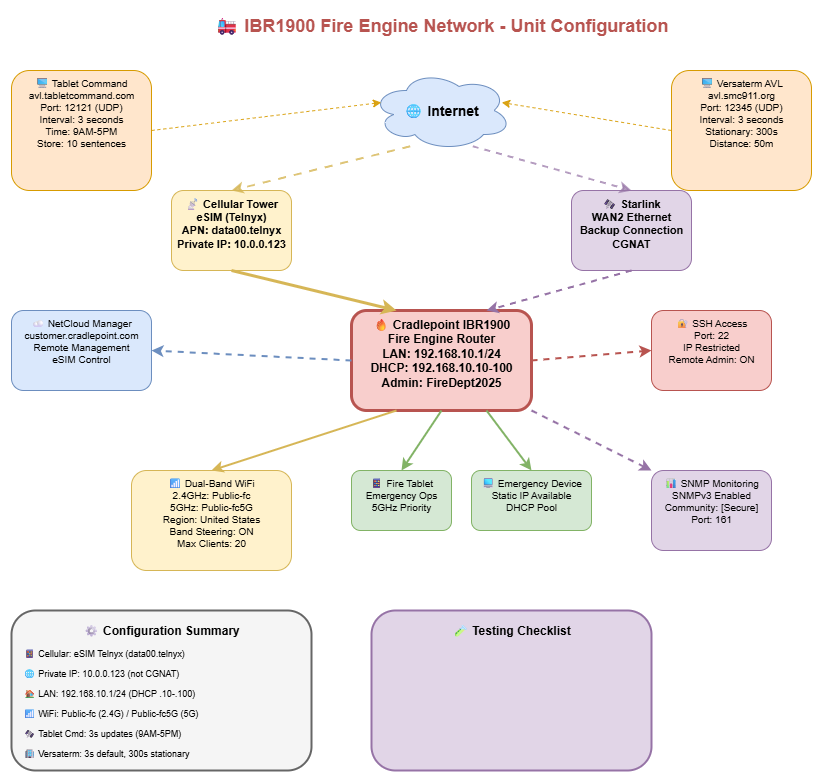

🚒 IBR1900 Fire Engine Network - Unit Configuration
Network Components & Architecture
Each fire apparatus is equipped with enterprise-grade networking equipment configured for maximum reliability and redundancy.
🔥 Cradlepoint IBR1900 Router
At the heart of each vehicle network:
- LAN: 192.168.10.1/24
- DHCP Range: 192.168.10.10-100
- Admin Access: FireDept2025
- Dual-modem cellular connectivity
- Automatic failover capabilities
- Cloud-managed via NetCloud
📡 Cellular Connectivity
Primary connection with enterprise features:
- Telnyx eSIM (data00.telnyx)
- Private IP: 10.0.0.123
- Priority APN configuration
- FirstNet ready
- Multi-carrier support
- Always-on connectivity
🛰️ Starlink Backup
Satellite redundancy for remote operations:
- WAN2 Ethernet backup connection
- CGNAT addressing
- Automatic failover from cellular
- 50-150 Mbps typical speeds
- Low latency for real-time apps
- Works anywhere with sky view
📶 WiFi Network
Dual-band wireless access:
- 2.4GHz: Public-6c6G
- 5GHz: Public-6c5G / Priority-5GHz
- Region: United States
- Band Steering: ON
- Max Clients: 20
- Fire Tablet Emergency Ops priority
💻 Device Management
Static IP assignment for critical devices:
- Emergency devices in DHCP pool
- Tablets and iPads configured
- SSH access with IP restrictions
- Remote admin enabled
- Secure credential management
- SNMP monitoring (Port 161)
📲 Tablet Command Integration
Incident management connectivity:
- avl.smo41f.org (Port 12345 UDP)
- avl.tabletcommand.com (Port 12121 UDP)
- 3-second interval updates
- 9AM-5PM stationary optimization
- Default: 300 sentences stored
- 50m distance threshold
📍 Versaterm AVL
GPS tracking and dispatch integration:
- avl.smo41f.org (Port 12345 UDP)
- 3-second position updates
- Stationary mode: 9AM-5PM
- Real-time location tracking
- CAD system integration
- Distance-based reporting
🔒 Security & Monitoring
Enterprise-grade security features:
- NetCloud remote management
- eSIM control and provisioning
- SSH access restrictions
- SNMP monitoring enabled
- Community: [Secure]
- Firmware auto-updates
Why This Architecture Works
Our fire engine network design provides several critical advantages:
- Redundancy: Dual WAN connections ensure connectivity even when cellular networks are congested or unavailable
- Reliability: Enterprise-grade equipment designed for 24/7 operation in harsh environments
- Performance: Optimized routing and QoS ensures critical applications always have priority
- Management: Cloud-based monitoring and configuration enables fleet-wide updates and troubleshooting
- Security: Multiple layers of protection including firewalls, encryption, and access controls
- Scalability: Architecture supports additional devices and services as needs evolve
